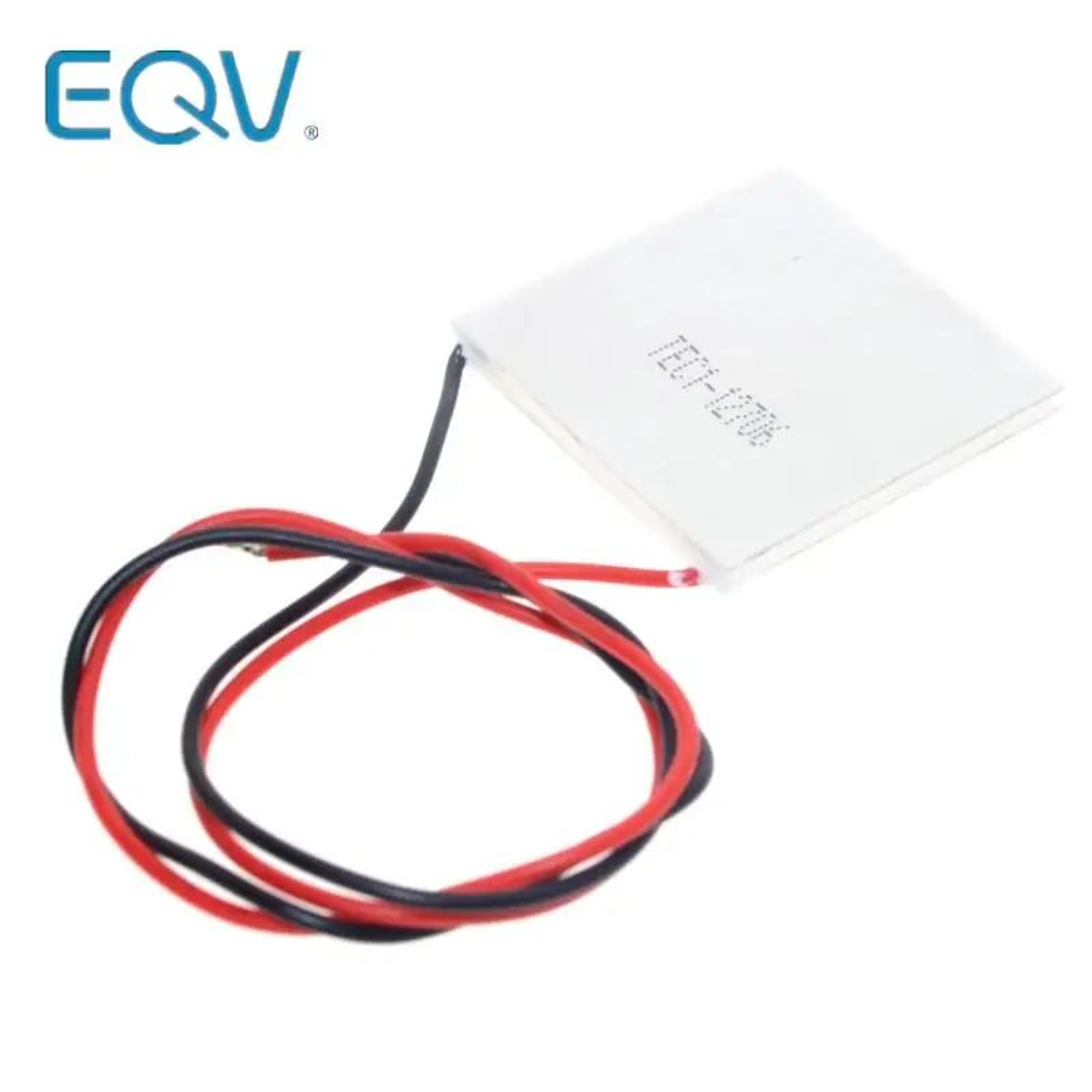

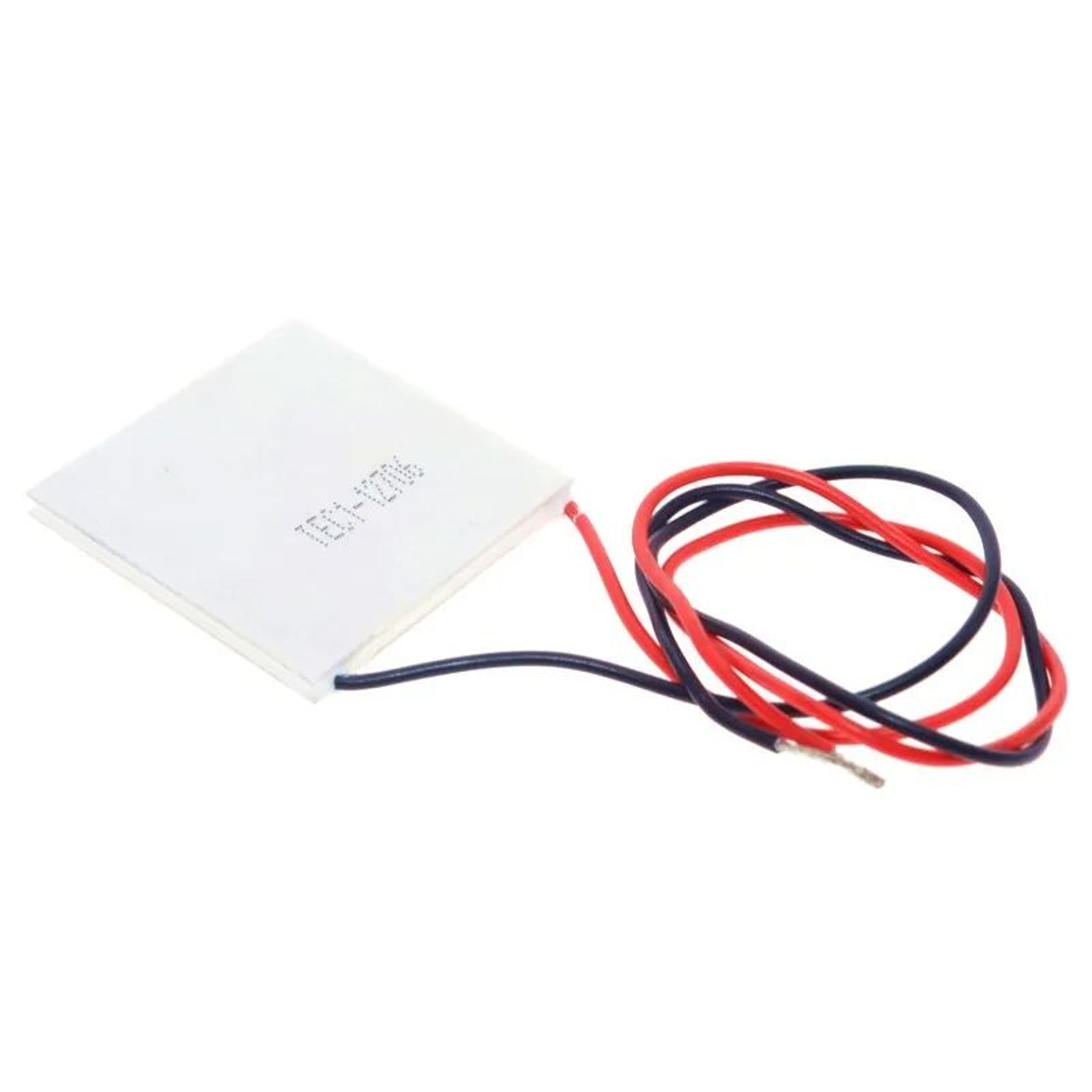

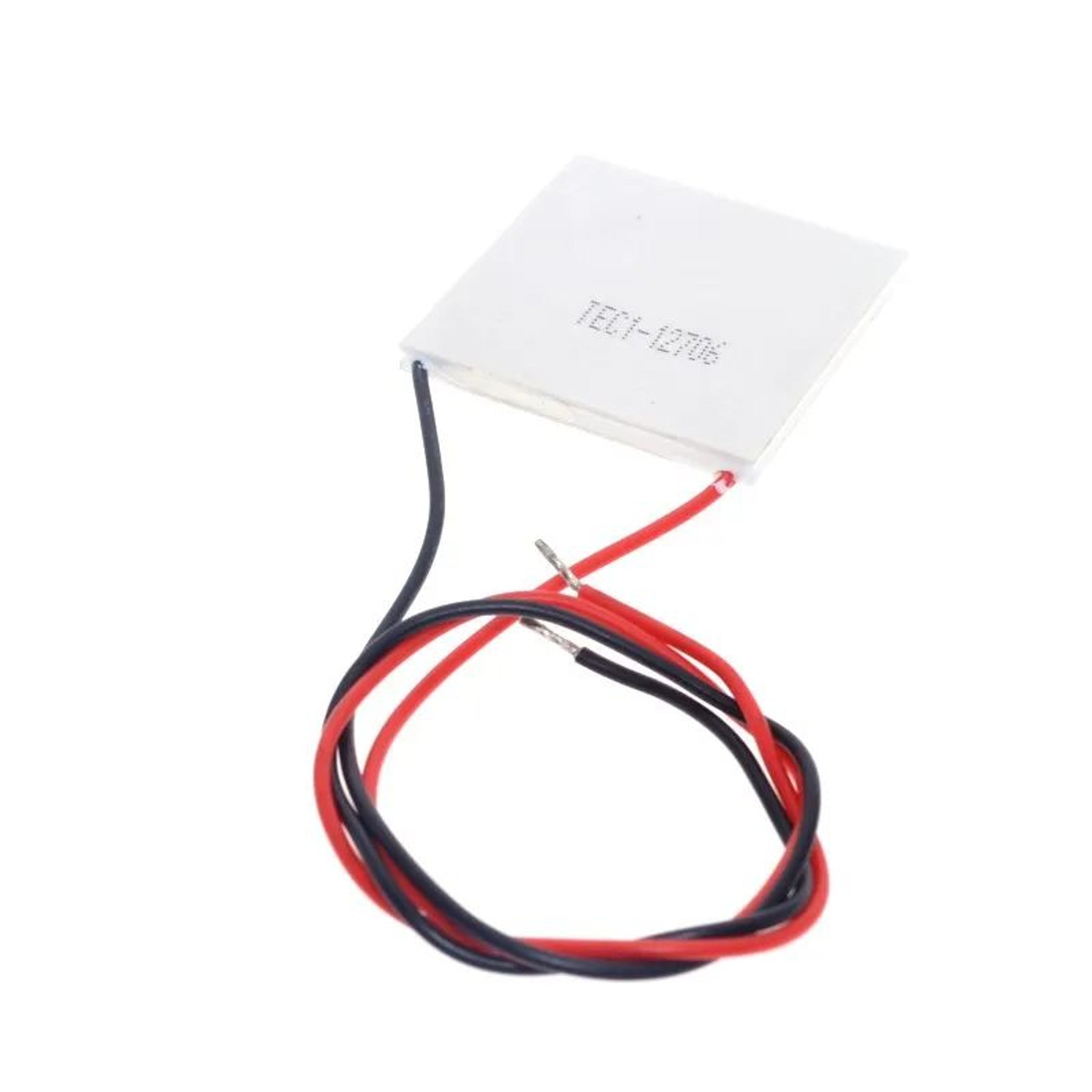

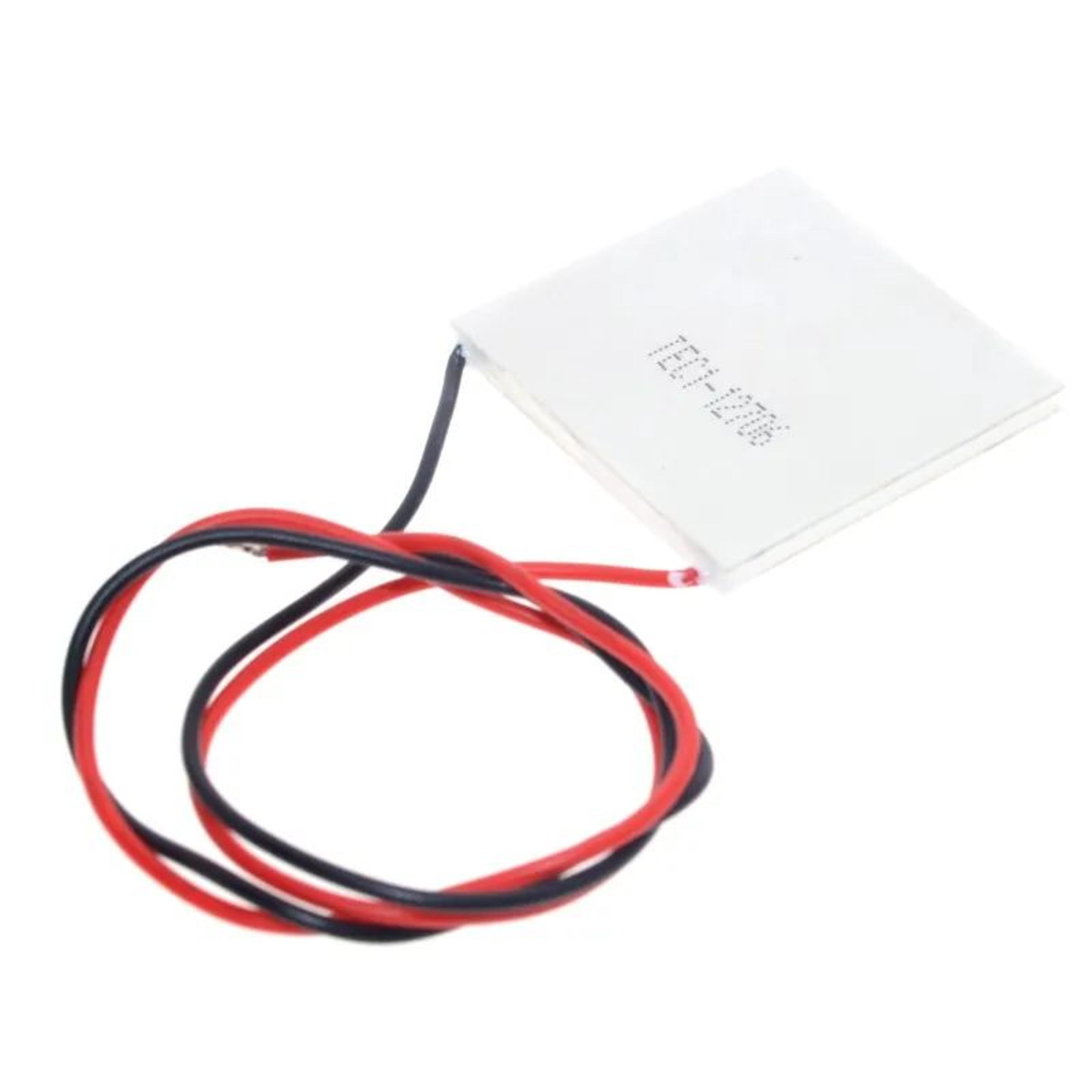

12 V TEC1-12706 Thermoelectric Peltier Cooling Module (2 PCS)

Product Description:
This pack of 2 TEC1-12706 thermoelectric cooler modules provides a cost-effective solution for DIY cooling and heating projects. Using solid-state Peltier technology, these 40×40 mm semiconductor modules transfer heat when powered by a 12 V DC supply, creating a cold side and a hot side — ideal for compact coolers, electronic component temperature control, mini refrigerators, and prototype thermal systems. Durable and versatile, they’re perfect for hobbyists, makers, and engineers working with thermal management.

Specifications:

• Model: TEC1-12706 thermoelectric cooling module

• Quantity: 2 pieces

• Rated Voltage: 12 V DC nominal

• Rated Current: Up to ~6 A

• Power: Approx. 50–60 W cooling capacity

• Dimensions: ~40 × 40 × 3–4 mm

• Max Temperature Differential T: Up to ~65–70 °C between cold and hot sides

• Material: Ceramic/semiconductor semiconductor couples

• Operation: Solid-state thermoelectric cooling/heating

Key Features:

• Peltier cooling technology: Creates an efficient cold side and hot side when DC power is applied — no moving parts or refrigerants.

• Dual polarity function: Reverse polarity to switch between cooling and heating applications.

• Compact size: 40×40 mm form factor fits into compact thermal projects and small enclosures.

• Strong temperature differential: Able to achieve around 60–70 °C difference for active cooling tasks.

• Durable semiconductor design: Long life and robust operation across repeated cycles.

Other Details:

• Ideal for portable coolers, mini refrigerators, beverage chillers, and compact thermal systems.

• Can be used to cool electronics such as CPUs, sensors, and temperature-sensitive components.

• Requires heat dissipation setup (heat sinks, fans) on the hot side for best performance and safety.

• Common in DIY thermal projects, maker prototypes, and experimental energy systems.
