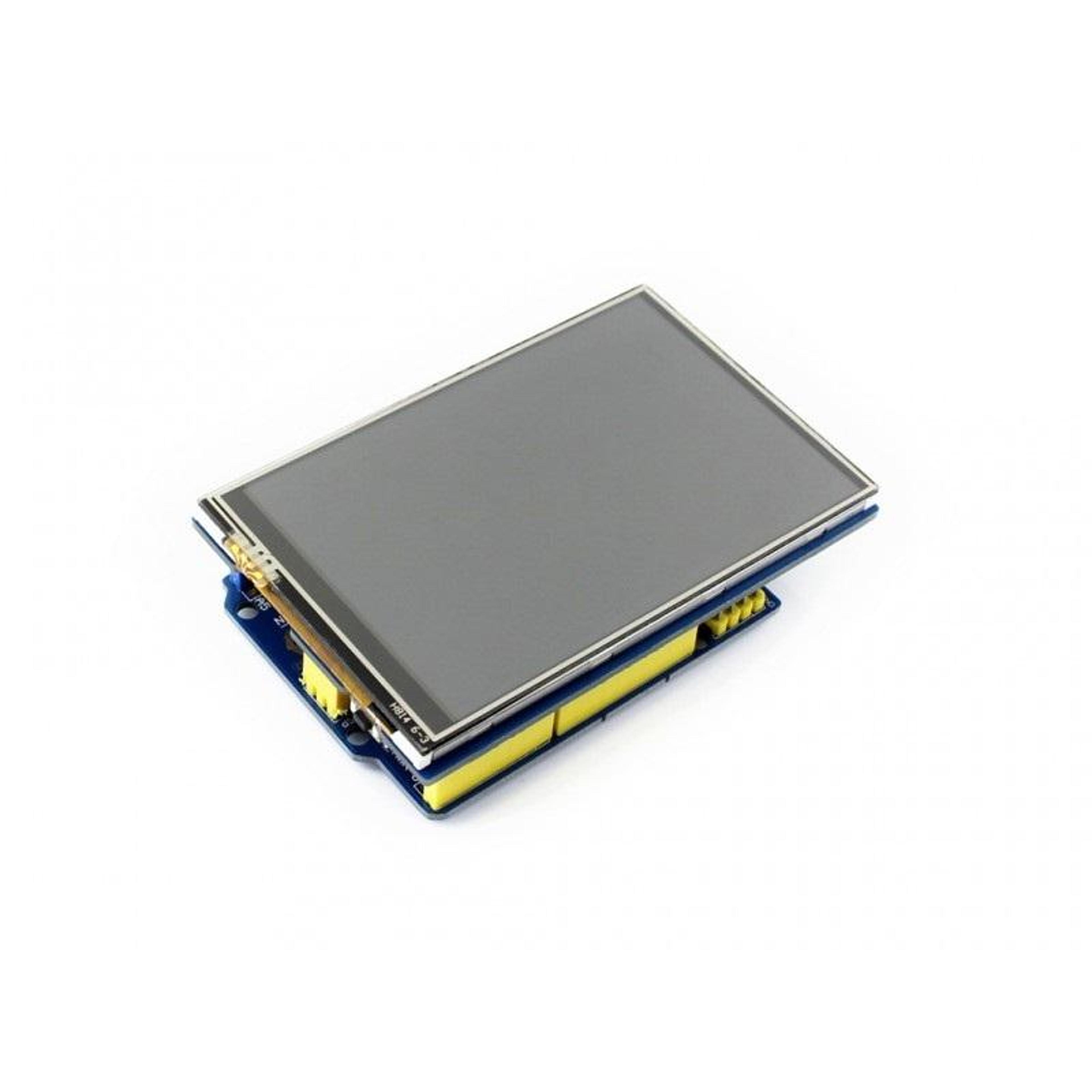

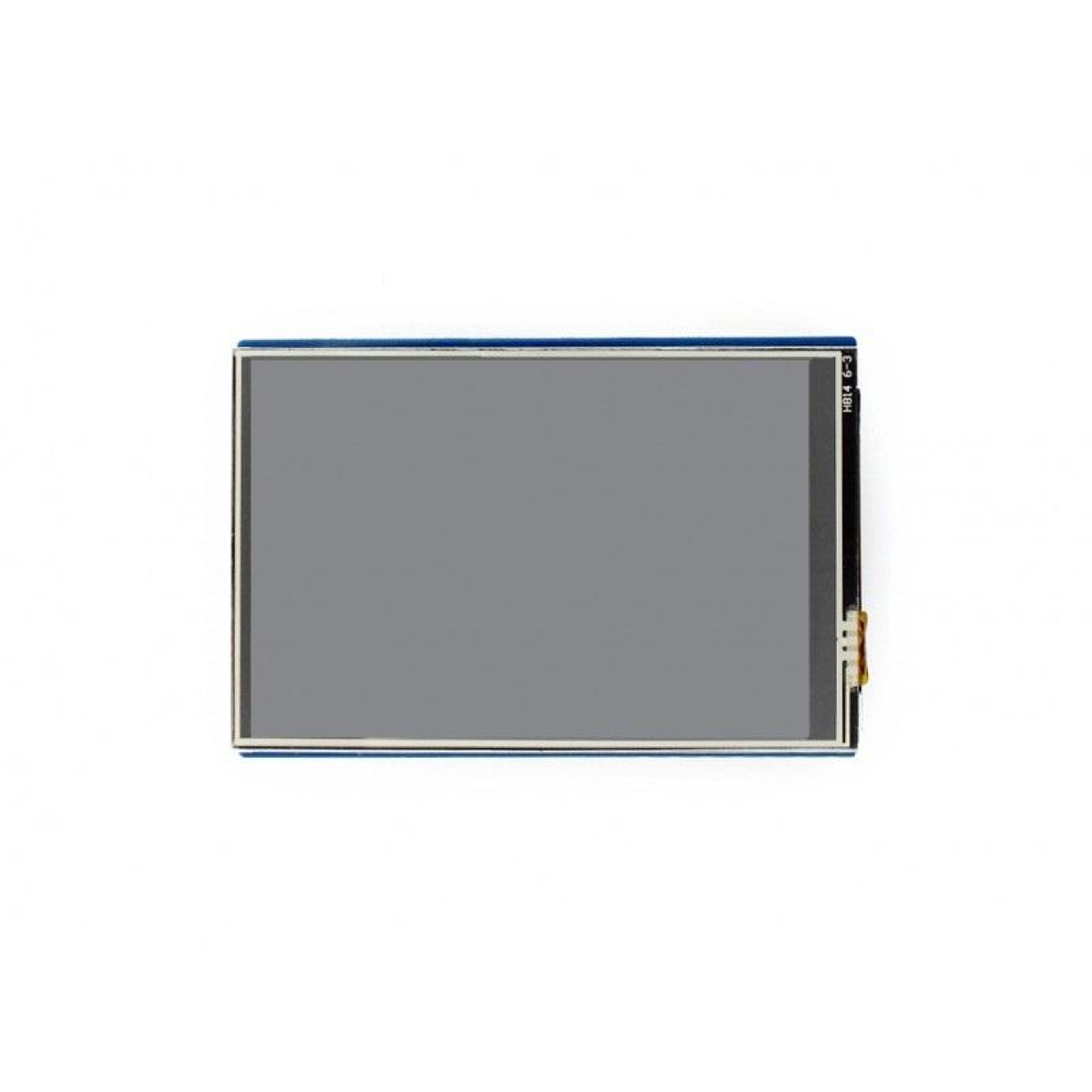

3.5 Inch Arduino Touch Screen TFT LCD Shield 480x320 with SPI and MicroSD

Bring your Arduino projects to life with a clear, interactive display that makes information easier to see and controls more intuitive. This 3.5 inch TFT LCD combines a 480x320 color display with responsive resistive touch, giving makers and developers a practical way to build menus, dashboards, controls, and visual interfaces. Its SPI LCD Shield design uses only a few Arduino pins, leaving more connections available for other project components. With onboard touch control, adjustable PWM backlighting, and MicroSD storage, it packs useful display features into one convenient shield. Arduino and STM32 examples also make development and porting easier.

Key Features

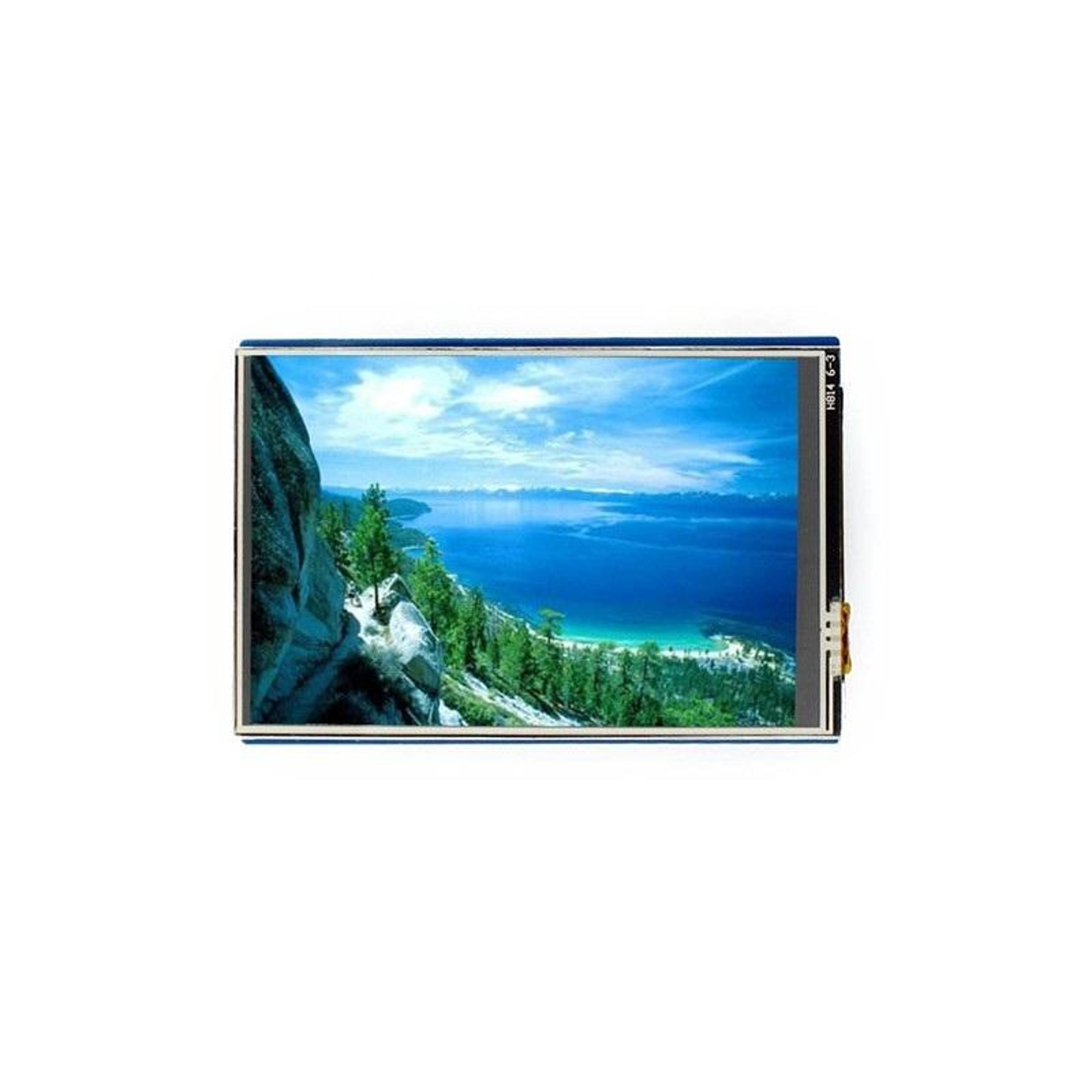

• Crisp 480x320 TFT display with 65K RGB colors for text, graphics, gauges, and menus.
• Dedicated XPT2046 resistive touch controller provides reliable interaction without relying directly on AD pins.
• ILI9486 LCD controller and SPI communication deliver practical integration while conserving I/O pins.
• Built-in MicroSD slot stores images and display assets, while PWM control lets you adjust screen brightness.
• Supports Arduino UNO, Leonardo, UNO PLUS, NUCLEO, and XNUCLEO development boards.



Why Choose Our 3.5 Inch Arduino Touch Screen TFT LCD Shield?

Unlike basic display modules that can require more wiring or use analog pins directly for touch control, this shield combines a dedicated touch controller, standard Arduino interface, MicroSD storage, and adjustable backlighting. It gives makers a versatile, space-efficient solution for adding both visual output and touch input to compatible projects.

Perfect For

• Arduino and STM32 prototyping
• DIY touchscreen control panels
• Robotics and automation interfaces
• Sensor dashboards and data displays
• Interactive menus and embedded projects
• Electronics learning and development



Turn Your Project Into an Interactive Experience

Give your next build a clear, responsive interface that makes controlling and viewing your project more convenient. Order the 3.5 Inch Arduino Touch Screen TFT LCD Shield and start creating more engaging Arduino projects.
