3-Wire Terminal Block Connectors

These 3-wire terminal block connectors provide a practical solution for connecting compatible solid electrical wires. Featuring a plug-in interface, tinned copper contacts, and a compact design, each VSE-103D connector accommodates three wire connections and supports 2.5–6 mm single-strand solid wire.

Key Features

• 3-Wire Connection: Features three connection positions for organizing and joining compatible electrical wires.

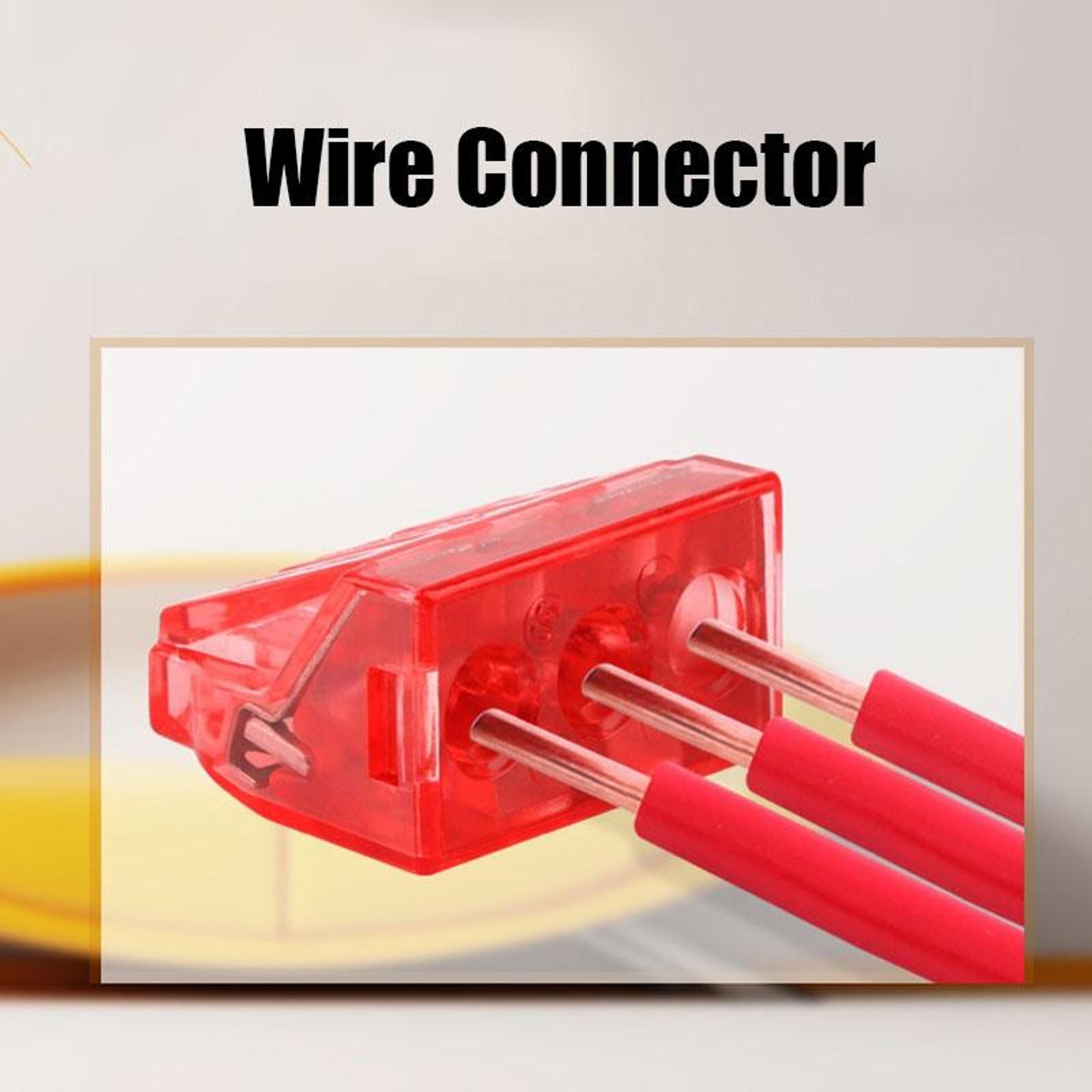

• Plug-In Interface: Provides a straightforward connection method for supported solid wires.

• Tinned Copper Contacts: Uses tinned copper contact material for electrical conductivity.

• High Electrical Ratings: Rated for 400V, 41A, and 4 kW to support applications within the specified electrical limits.

• Compact Construction: Injection-molded PC and PA66 insulating materials provide a compact connector body.



Specifications

• Product Type: Electrical terminal block wire connector

• Model: VSE-103D

• Quantity: 10 pieces

• Number of Cores: 3

• Connection Type: Plug-in

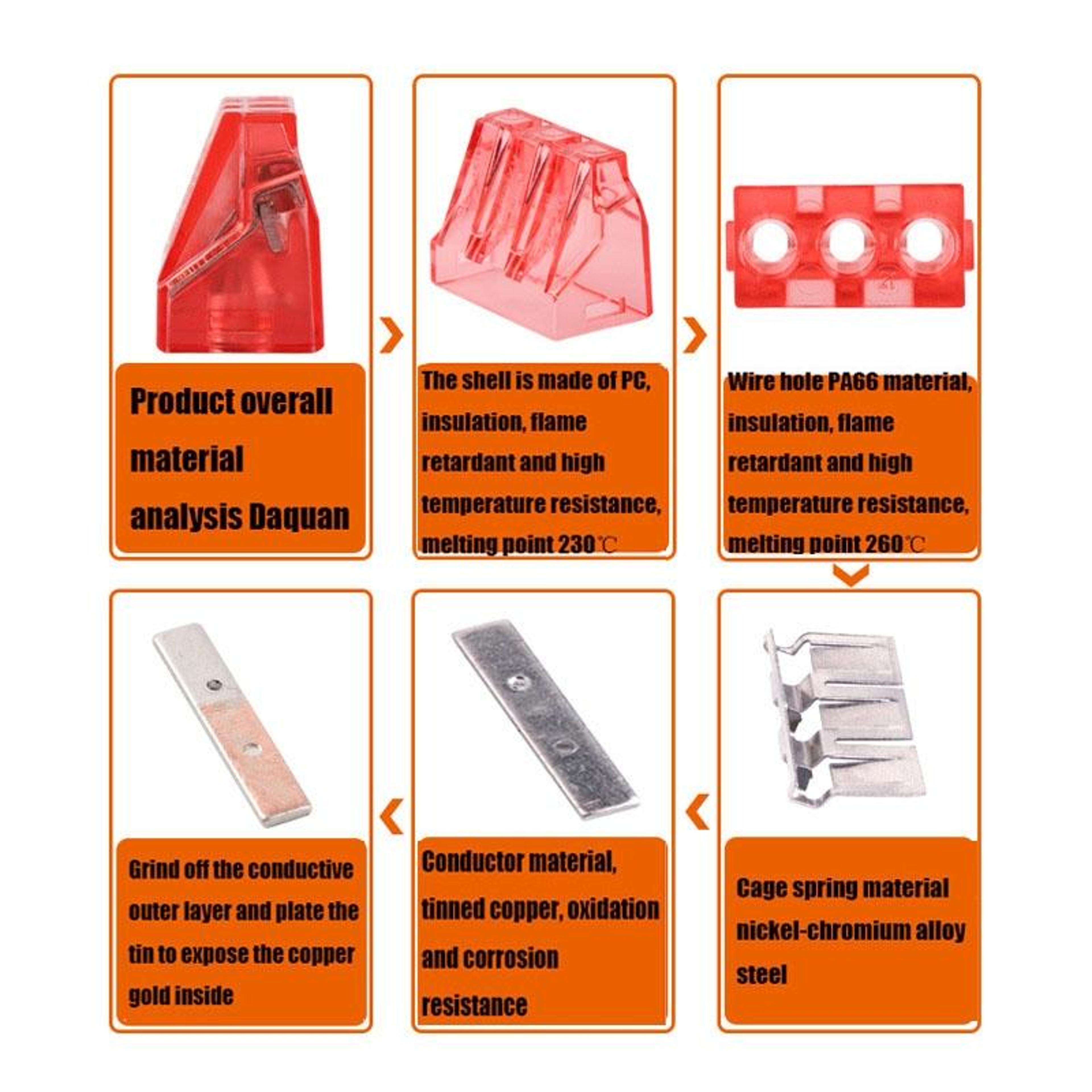

• Contact Material: Tinned copper

• Insulator Materials: PC and PA66

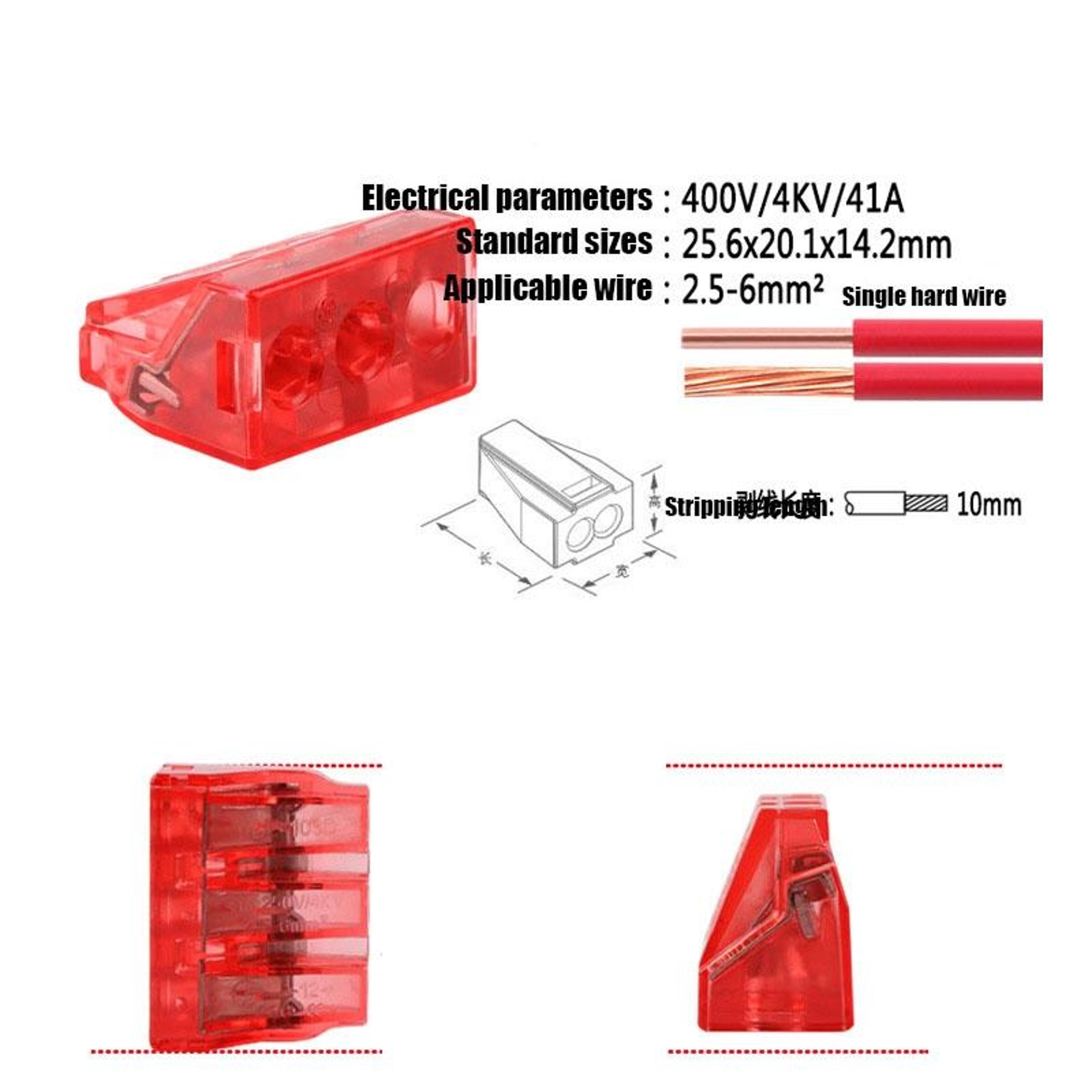

• Dimensions: 1.0 × 0.8 × 0.4 inches (25.6 × 20.1 × 11.2 mm)

• Rated Voltage: 400V

• Rated Current: 41A

• Rated Power: 4 kW

• Compatible Wire: 2.5–6 mm single-strand solid wire

• Working Frequency: Low frequency

• Production Process: Injection molding

• Application: Electrical wire connections



With 10 compact connectors included, this set offers a convenient option for electrical wiring projects that require compatible three-wire terminal block connections.
