Digital PID Temperature Controller with SSR Output and K Thermocouple Probe

Get precise and stable temperature regulation with this digital PID temperature controller kit. Designed for heating, oven builds, kilns, distillation setups, and DIY automation, this controller uses advanced PID self tuning for fast response, minimal overshoot, and reliable accuracy. The package includes a solid state relay, heat sink, and K type probe for easy installation.

Key Benefits

• Fast reacting PID control for accurate temperature regulation

• Supports K type thermocouples up to 400 C

• Includes SSR and heat sink for high load switching

• Easy button setup with clear PV and SV display

• Compact size ideal for control boxes and custom builds

• Stable industrial grade performance

Specifications

• Control Type: PID self tuning

• Measurement Precision: ±0.5 percent FS

• Cold Junction Compensation: ±2 C

• Resolution: 14 bit

• Sampling Period: 0.5 seconds

• Display: PV and SV dual display

• Power Supply: AC 100 to 240V 50Hz

• Insulation Resistance: >500 MΩ at 500V DC

• Dielectric Strength: 1500V AC for 1 minute

• Power Consumption: <10VA

• Operating Conditions: 0 to 50 C, 30 to 85 percent RH (non corrosive)

• Thermocouple Type: K type probe (0 to 400 C)

Controller Dimensions

• Front Panel: 48 mm x 48 mm

• Body Size: 44 mm x 44 mm x 100 mm

• Mounting Cutout: approx. 44 mm x 44 mm

Package Includes

• Digital PID Temperature Controller

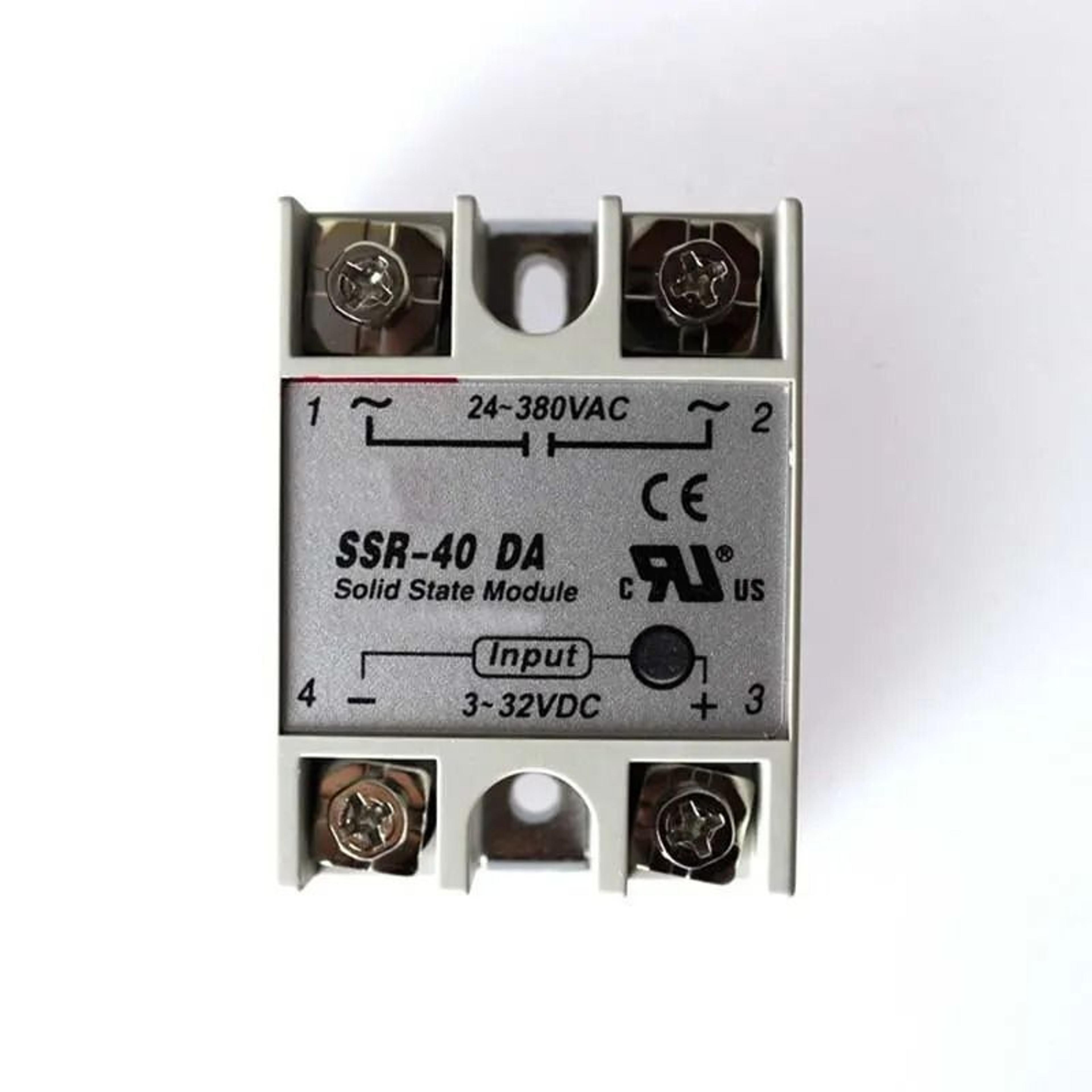

• 40A Solid State Relay

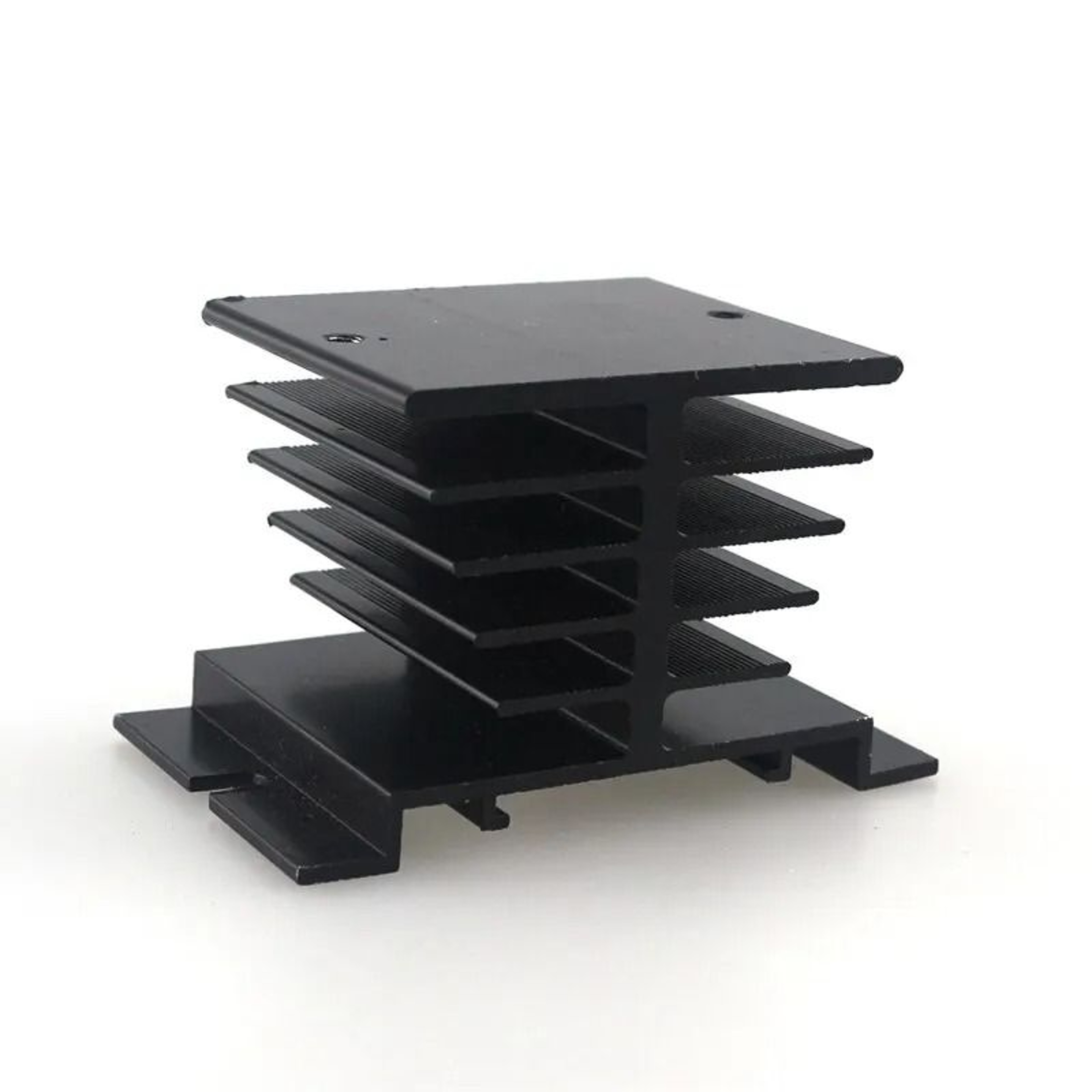

• Heat Sink

• 1 m K Type Thermocouple Probe
