E Bike Hall Effect Sensor PCB Board RPM Speed Sensor

Restore accurate speed detection and smooth motor control with this e bike hall effect sensor PCB board designed for electric bike controllers. Built with 502F and 3144 hall sensors, it provides reliable RPM speed measurement for stable and responsive riding performance. The curved PCB design allows proper fit inside compatible hub motors, making it suitable for repairs or controller replacements. Compact and precise, this board is an essential component for maintaining correct e bike speed feedback.

Key Features

• High pressure hall effect sensor PCB board for e bikes

• Uses 502F and 3144 hall sensors for speed measurement

• Provides accurate RPM and speed signal feedback

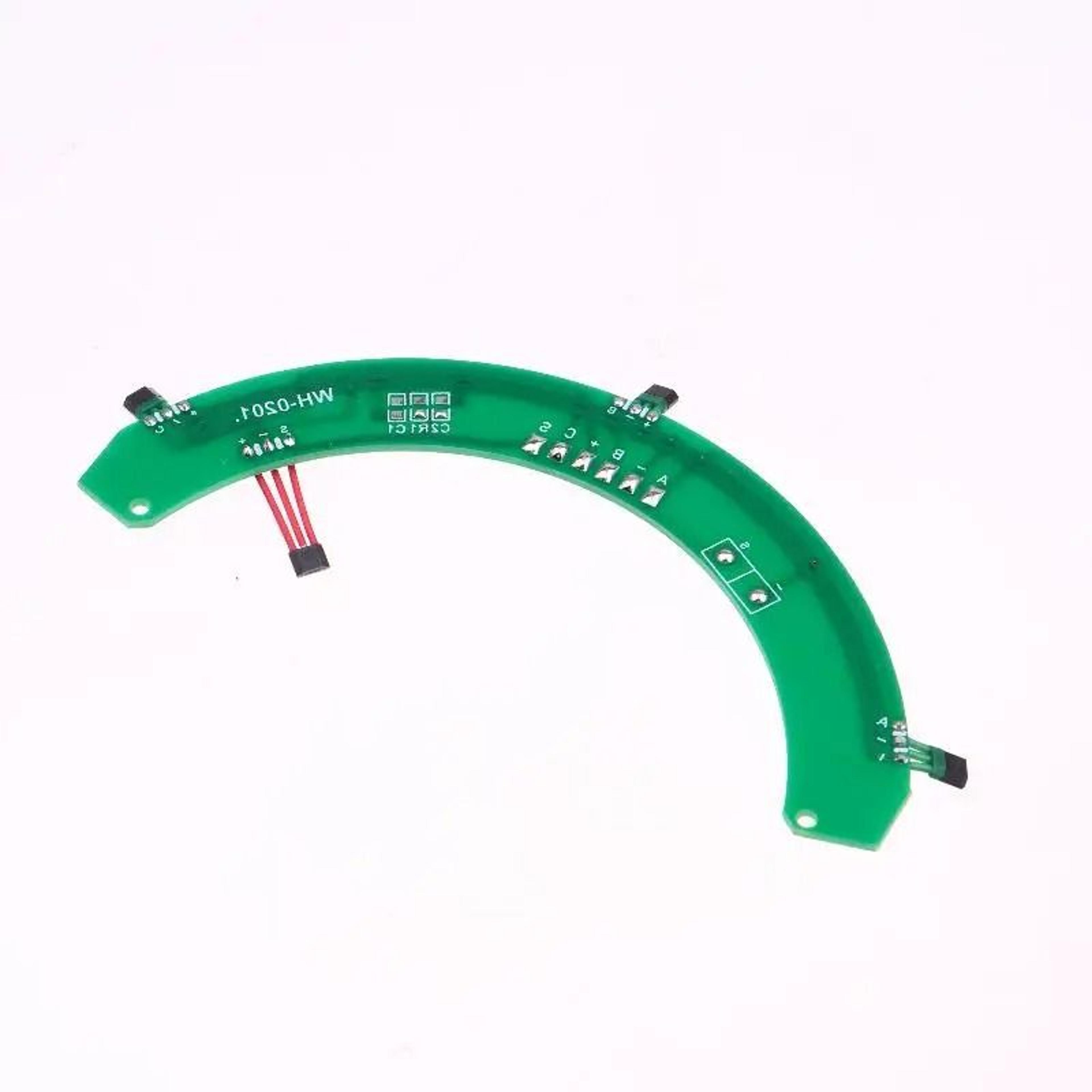

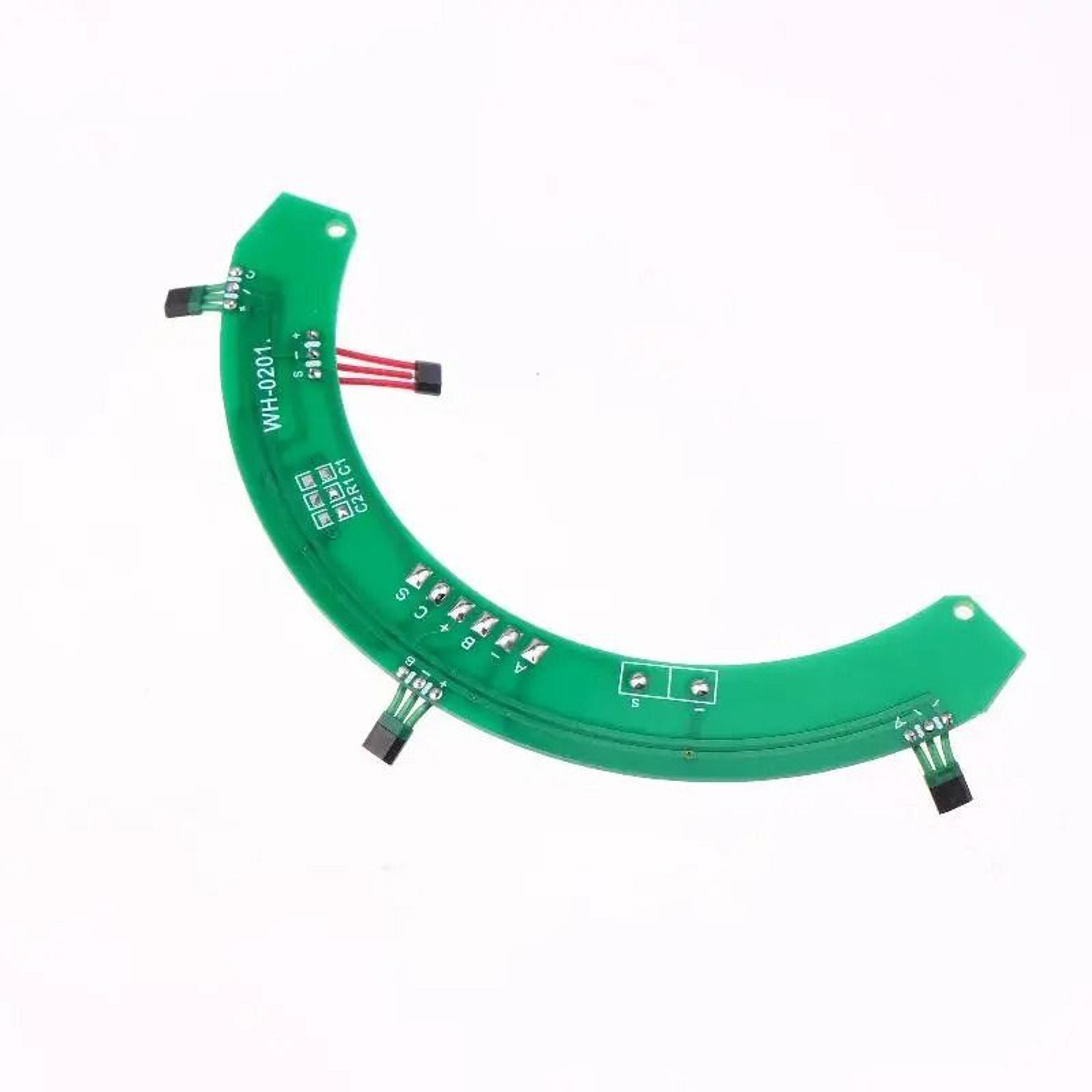

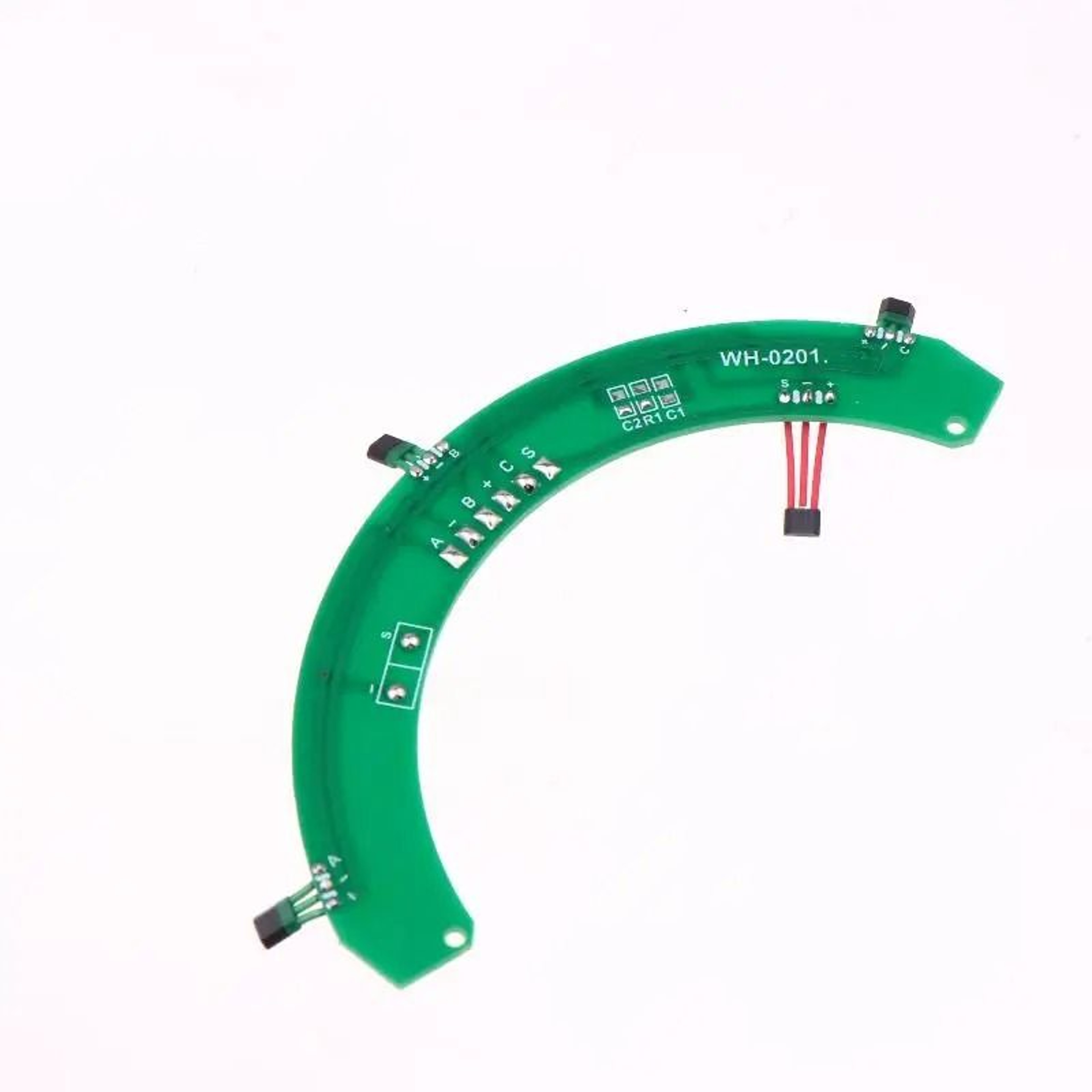

• Curved PCB design for hub motor installation

• Suitable for electric bike controller repair or replacement

Why Choose Our E Bike Hall Effect Sensor PCB Board RPM Speed Sensor
Unlike generic sensors, this PCB board is designed specifically for e bike motor applications, ensuring stable signal output and reliable performance. It helps restore proper speed detection and improves overall controller response.

Perfect For

• Electric bike motor repair

• Replacing faulty hall speed sensors

• E bike controller maintenance

• DIY e bike upgrades and repairs

Ensure accurate speed measurement and dependable motor performance with a hall sensor board built for electric bike systems.

Specifications

• Sensor Type: Hall effect

• Hall Model: 502F and 3144

• Function: RPM speed measurement

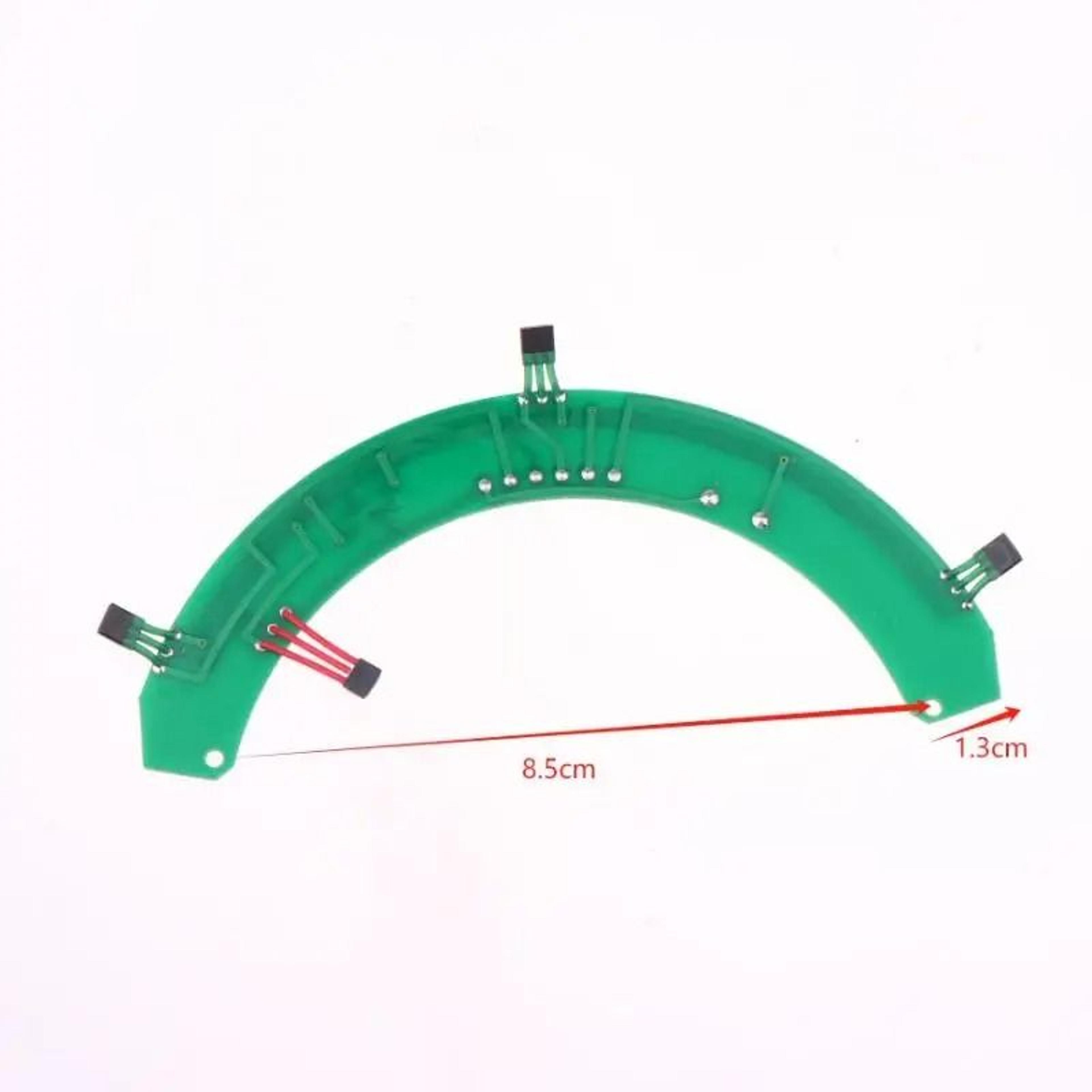

• Board Length: 3.35 in

• Board Width: 0.51 in

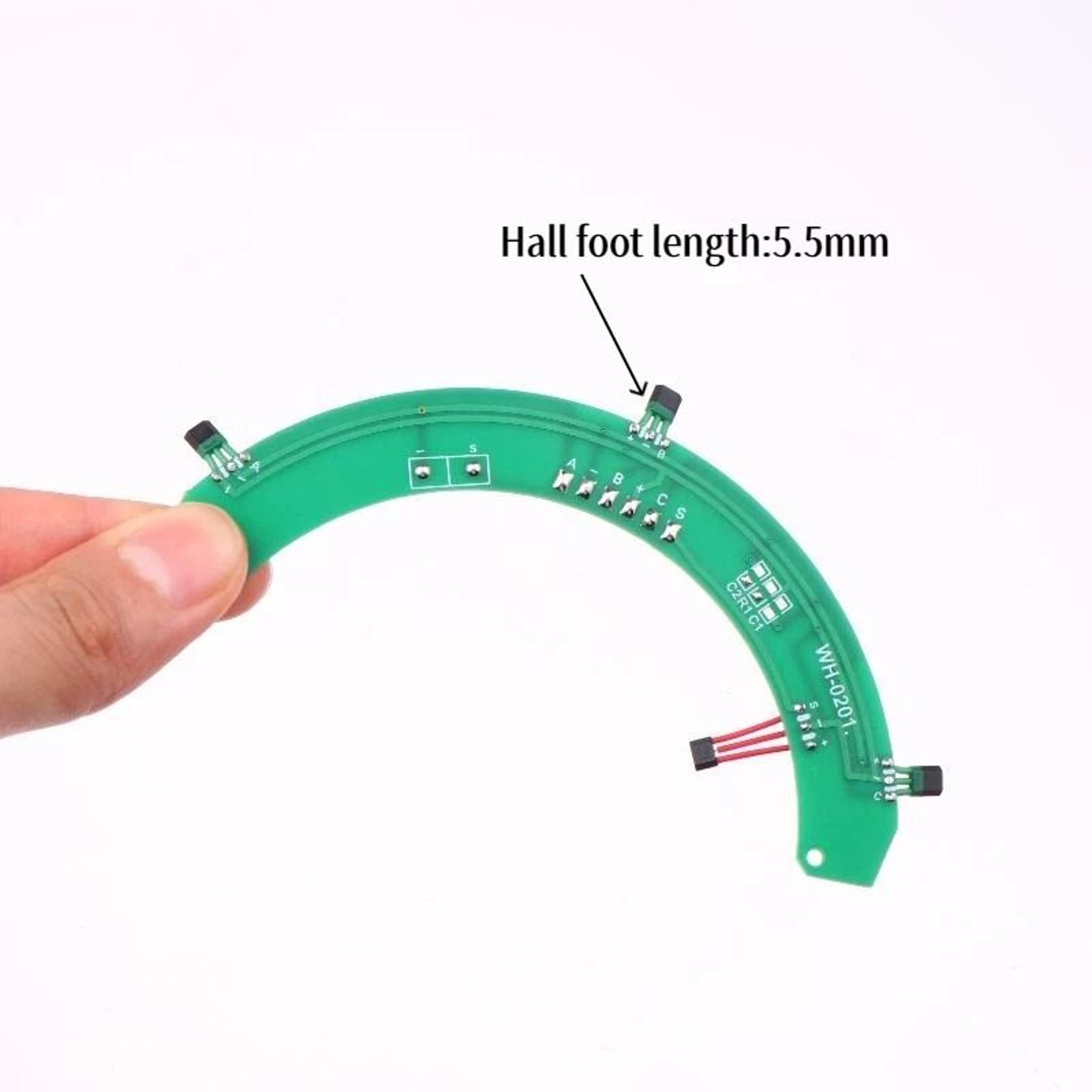

• Hall Foot Length: 0.22 in

• Application: Electric bike motor and controller
