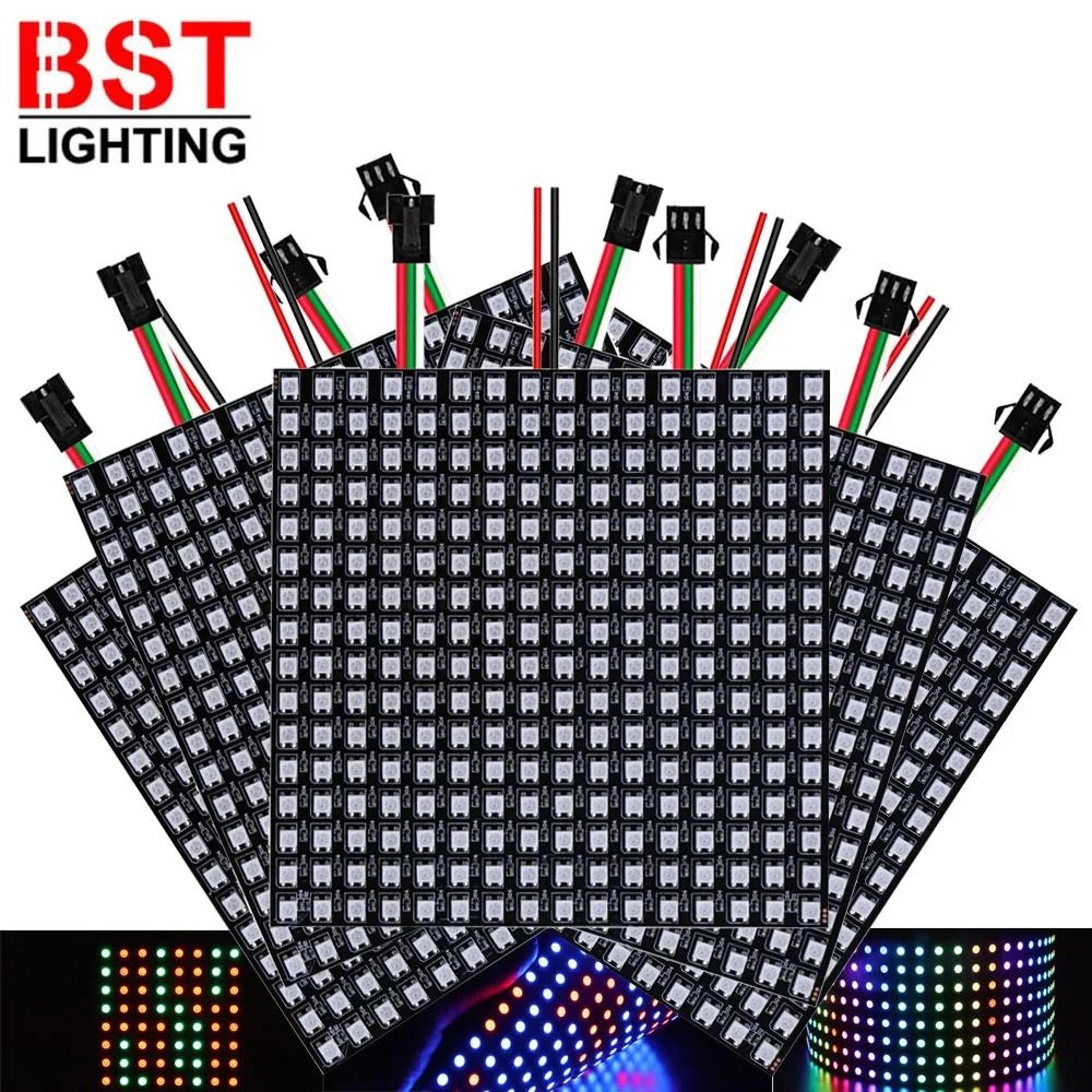

WS2812B RGB Individually Addressable Flexible LED Matrix Panel (5V)

Build custom pixel art, dynamic digital signage, and audio-reactive displays with this WS2812B RGB individually addressable flexible LED matrix panel. Engineered with integrated WS2812B ICs inside each 5050 RGB diode, this 5V DC panel gives you full 24-bit color control (16.7 million colors) over every single LED pixel independently. Built on a ultra-thin, flexible black PCB matrix, multiple panels can be daisy-chained together via 3-pin JST connectors to scale your displays into larger video walls, wearable tech, and smart home lighting installations.

Key Features

• Individually addressable WS2812B ICs allowing pixel-level color, brightness, and animation programming

• Flexible black FPC backing board that bends around curved surfaces, wearables, and custom enclosures

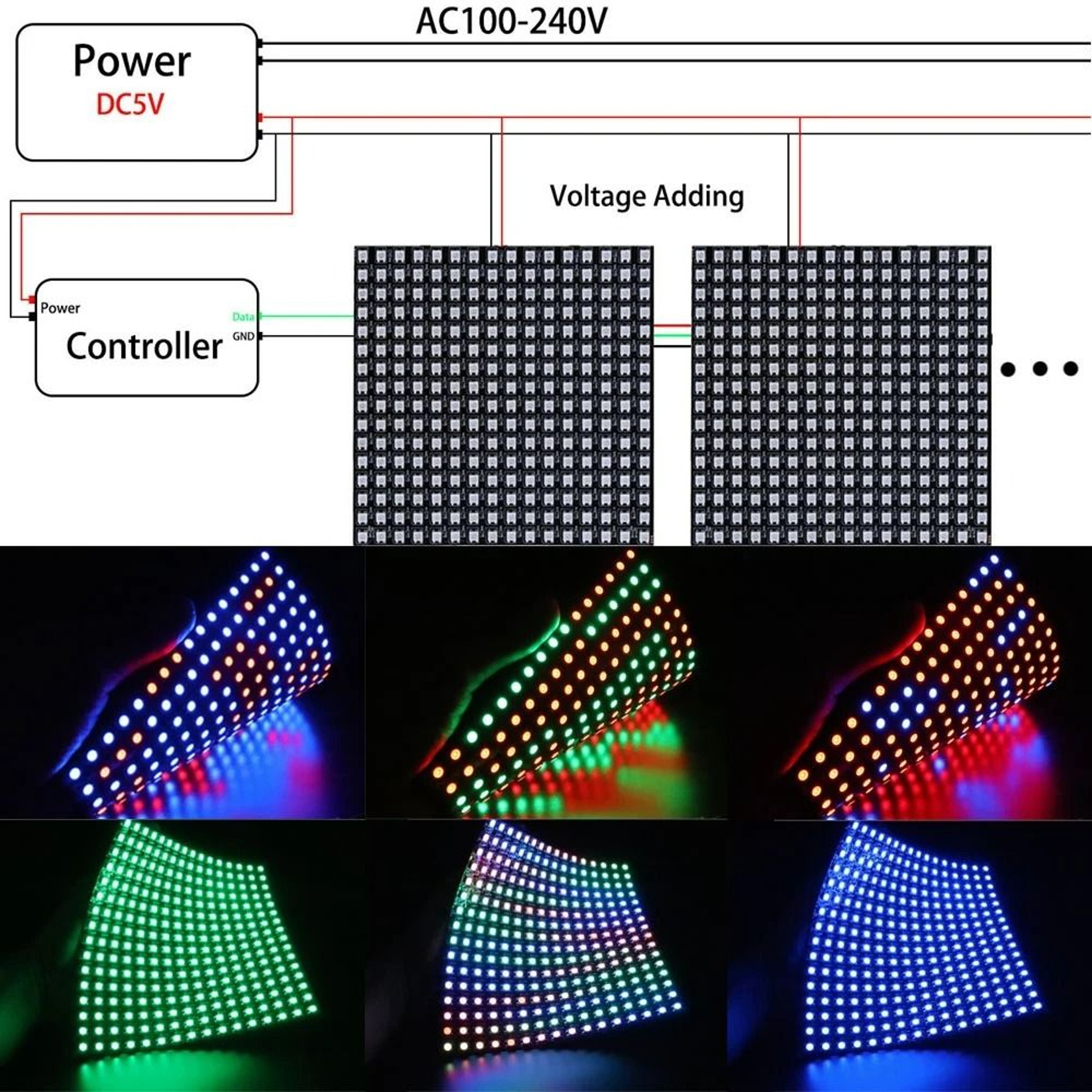

• Chainable 3-pin JST-SM connectors for seamless data passthrough and power injection across multiple panels

• Fully compatible with Arduino, Raspberry Pi, ESP8266, ESP32, FastLED, and WLED control software

Why Choose Our WS2812B LED Matrix Panel Unlike basic single-color or whole-strip RGB panels, this addressable COB/SMD matrix turns your setup into a programmable digital screen. Whether running scrolling text banners, custom 8-bit animations, or music visualizers, the standardized 3-pin data interface makes programming effortless across popular open-source hardware platforms.

Perfect For

• DIY pixel art displays, desk tickers, digital clocks, and gaming setup accent panels

• Wearables, cosplay costume illumination, festival gear, and custom apparel

• Commercial storefront displays, audio visualizers, smart home status monitors, and trade show signage

Product Specs

• Input Voltage: 5V DC (Requires external 5V power supply based on LED count)

• LED Type: WS2812B 5050 RGB Micro-LEDs (Built-in IC)

• PCB Color: Flexible Black FPC

• Communication Interface: 3-Pin Data (VCC, GND, DAT)

• Gray Scale: 256 Levels per Color (24-bit total color depth)

• Application: Programmable Pixel Art, Signage & Custom Decor

• Available Configurations:

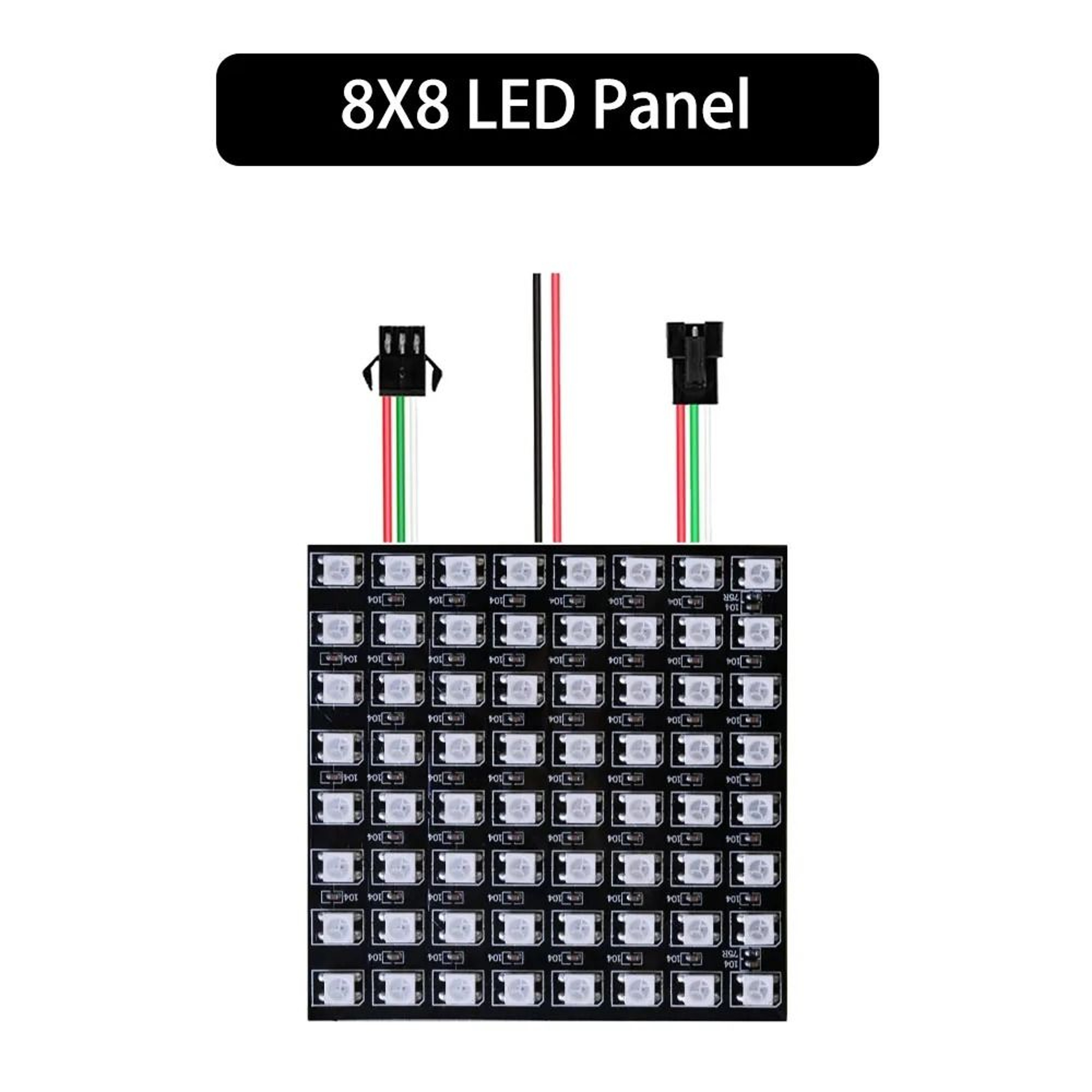

  • 8x8 Grid – 64 LEDs (Approx. 3.15 x 3.15 in / 8 x 8 cm)

  • 16x16 Grid – 256 LEDs (Approx. 6.3 x 6.3 in / 16 x 16 cm)

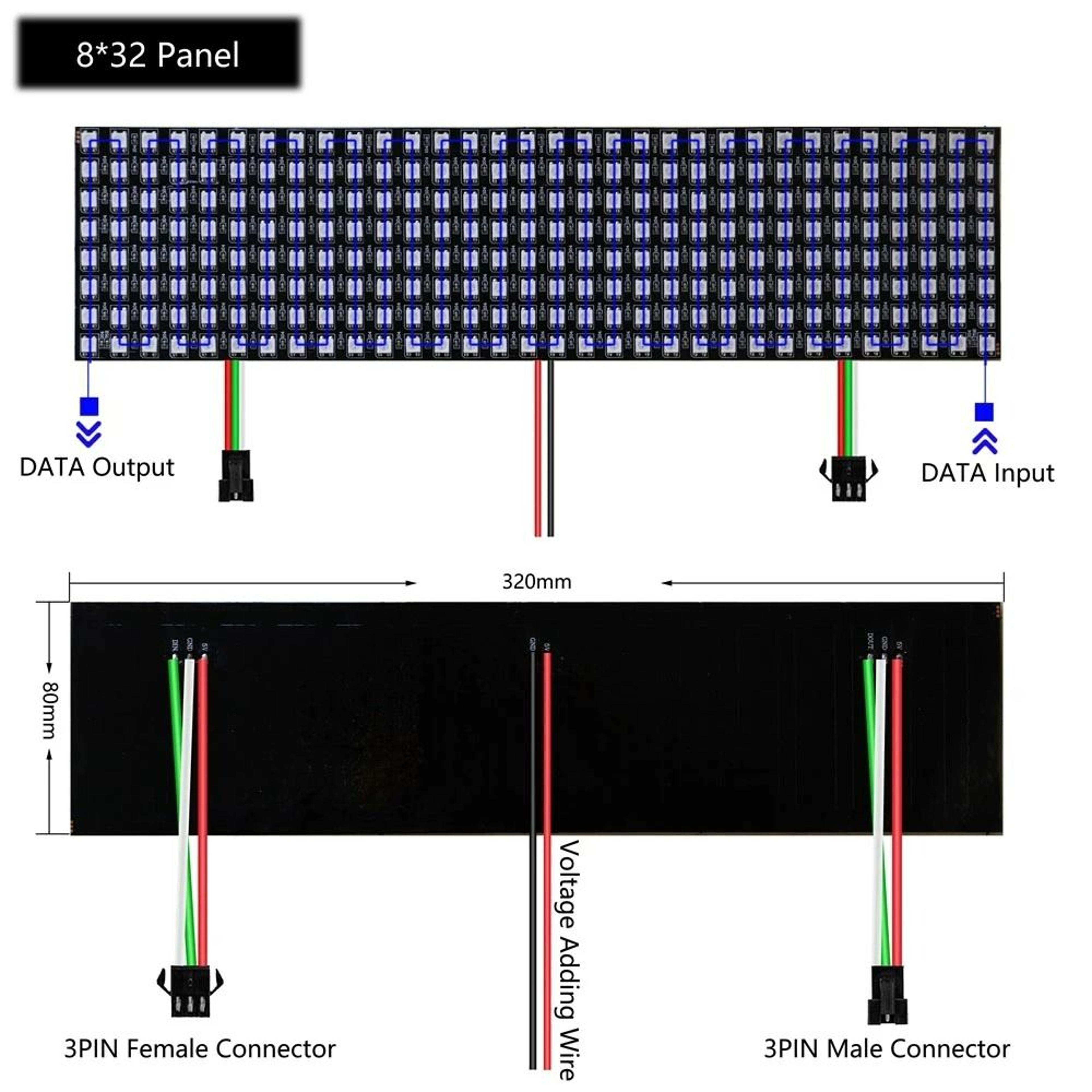

  • 8x32 Grid – 256 LEDs (Approx. 3.15 x 12.6 in / 8 x 32 cm)

Bring your DIY digital creations to life with pixel-perfect control—order your WS2812B RGB Flexible Addressable LED Matrix Panel today and start programming.
